Lenovo Legion 5 16IRX9 (83DG004NUS)- Intel Core i7-14650HX, 16C – 16GB DDR5-5600(1x 16GB) – 512GB SSD M.2 NVMe – RTX 4060 8GB GDDR6 – 16″ WQXGA (2560×1600) IPS 350nits , 100% sRGB, 165Hz – Win 11- Luna Grey -1Year

Description

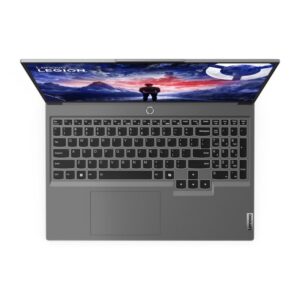

Lenovo Legion 5 16IRX9 – Gaming Laptop

Model: Legion 5 16IRX9
Part Number: 83DG004NUS
Brand: Lenovo
Region: Egypt

---

Performance

Processor:
Intel® Core™ i7-14650HX
16 Cores (8P + 8E) / 24 Threads
P-core 2.2 / 5.2GHz
E-core 1.6 / 3.7GHz
30MB Cache

AI PC Category: AI-Powered Gaming PC
AI Features: AI Chip: LA1

Graphics:
NVIDIA® GeForce RTX™ 4060 8GB GDDR6
Boost Clock: 2370MHz
TGP: 140W
233 AI TOPS

Chipset: Intel® HM770

---

Memory & Storage

Installed Memory: 16GB DDR5-5600 (1× SO-DIMM)
Memory Slots: 2× DDR5 SO-DIMM, dual-channel capable
Maximum Memory: Up to 64GB DDR5-5600

Storage: 512GB M.2 2242 NVMe™ PCIe® 4.0×4 SSD
Storage Slots: 2× M.2 2280 PCIe® 4.0 x4
Maximum Storage Support: Up to 2× 1TB M.2 SSD

Card Reader: microSD Card Reader

---

Display

Size: 16″ IPS
Resolution: WQXGA (2560×1600)
Refresh Rate: 165Hz
Brightness: 350 nits
Color Gamut: 100% sRGB

Display Features: Anti-glare, Dolby Vision®, G-SYNC®, Low Blue Light
Touchscreen: No

---

Audio & Camera

Audio Chip: Realtek® ALC3287 HD Audio
Speakers: Stereo 2W ×2, optimized with Nahimic Audio

Camera: FHD 1080p with E-shutter
Microphones: Dual-array

---

Keyboard & Touchpad

Keyboard: 4-Zone RGB Backlit, English (US)

Touchpad: Buttonless Mylar® surface multi-touch
Size: 75 × 120 mm

---

Design & Build

Color: Luna Grey
Material: Aluminium (Top), PC-ABS (Bottom)
Surface Treatment: Aluminium Stamping (Anodized with Sandblasting)

Dimensions: 359.7 × 262.3 × 19.7–25.2 mm
Weight: Around 2.36 kg

---

Battery & Power

Battery: Integrated 80Wh
Power Adapter: 230W Slim Tip (3-pin)

---

Connectivity

Wi-Fi: Wi-Fi® 6E (802.11ax 2×2)
Bluetooth: BT 5.2
Ethernet: 100/1000M (RJ-45)

---

Ports

• 2× USB-A (USB 3.2 Gen 1 / 5Gbps)

• 1× USB-A Always On (USB 3.2 Gen 1 / 5Gbps)

• 2× USB-C® (USB 3.2 Gen 2 / 10Gbps), one with Lenovo® PD 140W & DisplayPort™ 1.4

• 1× HDMI® 2.1 (up to 8K/60Hz)

• 1× Headphone / Microphone Combo (3.5mm)

• 1× Ethernet (RJ-45)

• 1× Card Reader

• 1× Power Connector

---

Software

Operating System: Windows® 11 Home, English
Bundled Software: Office Trial

---

Security & Privacy

Security Chip: Firmware TPM 2.0 Enabled
Camera Privacy: E-shutter
Fingerprint Reader: None

---

Warranty & Service

Base Warranty: 1-Year Courier / Carry-in

---

Accessories

Bundled Accessories: None
