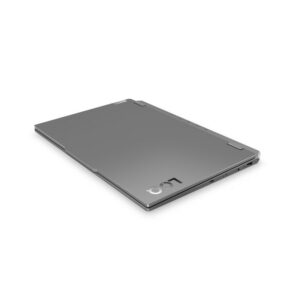

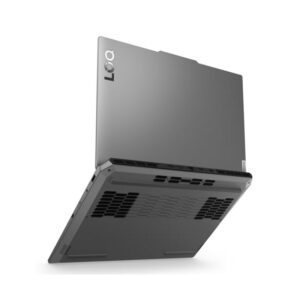

Lenovo LOQ 15IRX9 ( 83DV008QED )- Core i7-13650HX, 16GB DDR5-4800 RAM, 512GB SSD PCIe NVMe, RTX 3050 6GB, 15.6″ FHD 144Hz, Free DOS, White Arabic Backlit Keyboard, Luna Grey, 2-Year Warranty

Model: LOQ 15IRX9
Part Number: 83DV008QED

Processor: Intel® Core™ i7-13650HX, 14C (6P + 8E) / 20T, P-core 2.6 / 4.9GHz, E-core 1.9 / 3.6GHz, 24MB
Graphics: NVIDIA® GeForce RTX™ 3050 6GB GDDR6, Boost Clock 1732MHz, TGP 95W, AI TOPS 142
Chipset: Intel® HM770 Chipset
Memory: 1x 16GB SO-DIMM DDR5-4800
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-4800
Storage: 512GB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Support:

• Up to two drives, 2x M.2 SSD
  • M.2 2242 SSD up to 1TB
  • M.2 2280 SSD up to 1TB
    Storage Slot: Two M.2 2280 PCIe® 4.0 x4 slots
    Card Reader: None
    Optical: None
    Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec
    Speakers: Stereo speakers, 2W x2, optimized with Nahimic Audio
    Camera: FHD 1080p with E-shutter
    Microphone: 2x, Array
    Battery: Integrated 60Wh
    Power Adapter: 170W Slim Tip (3-pin)
    Special Features: AI Chip: LA1

DESIGN
Display: 15.6″ FHD (1920×1080) IPS 300 nits Anti-glare, 100% sRGB, 144Hz, G-SYNC®
Touchscreen: None
Color Calibration: None
Keyboard: White Backlit, Arabic
Touchpad: Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color: Luna Grey
Surface Treatment: Painting
Case Material: PC-ABS (Top), PC-ABS (Bottom)
Dimensions (WxDxH): 359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)
Weight: Starting at 2.38 kg (5.25 lbs)

SOFTWARE
Operating System: None
Bundled Software: None

CONNECTIVITY
Ethernet: Integrated 100/1000M
WLAN + Bluetooth: Wi-Fi® 6, 802.11ax 2×2 + BT5.2

Standard Ports:

• 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with Lenovo® PD 140W and DisplayPort™ 1.4
• 1x HDMI® 2.1, up to 8K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Ethernet (RJ-45)
• 1x Power connector

Docking: Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for LOQ 15IRX9

Security Chip: Firmware TPM 2.0 Enabled
Fingerprint Reader: None
Other Security: E-shutter

SERVICE
Base Warranty: 1-year, Courier or Carry-in
Included Upgrade: 2Y Courier/Carry-in upgrade from 1Y Courier/Carry-in

ACCESSORIES
Bundled Accessories: None
