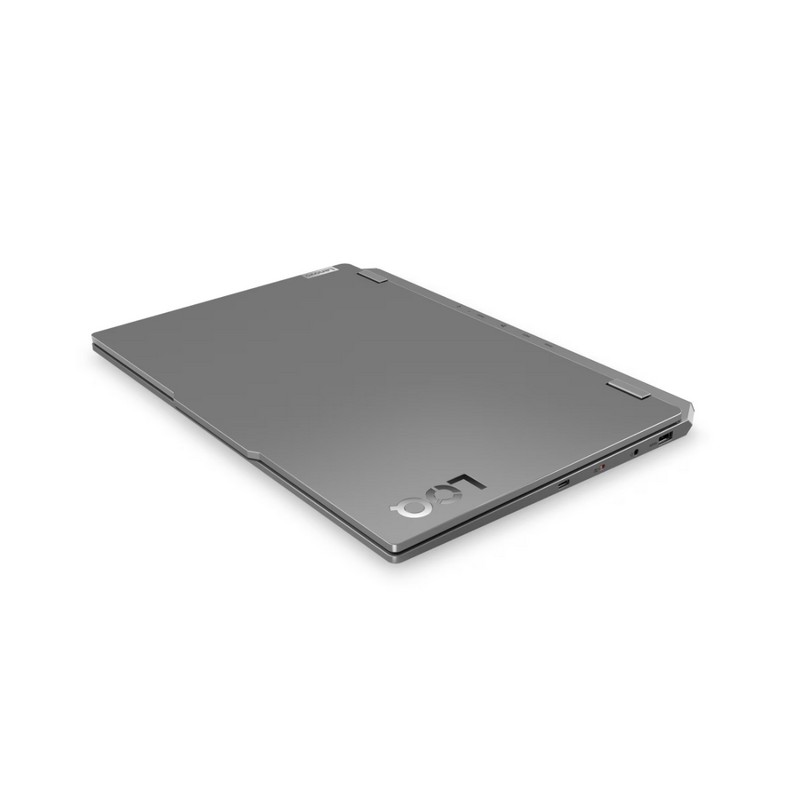

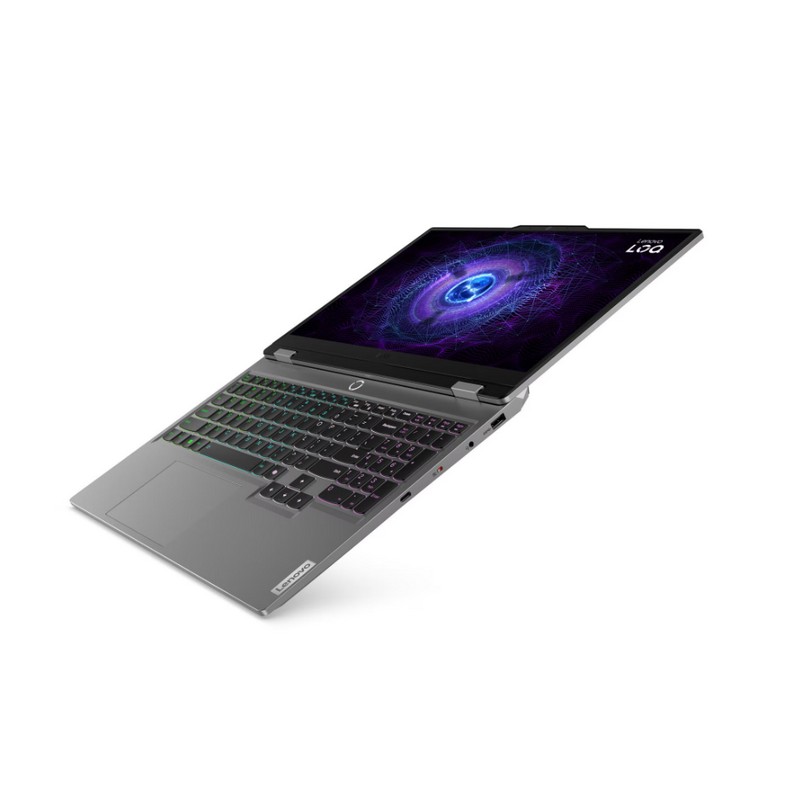

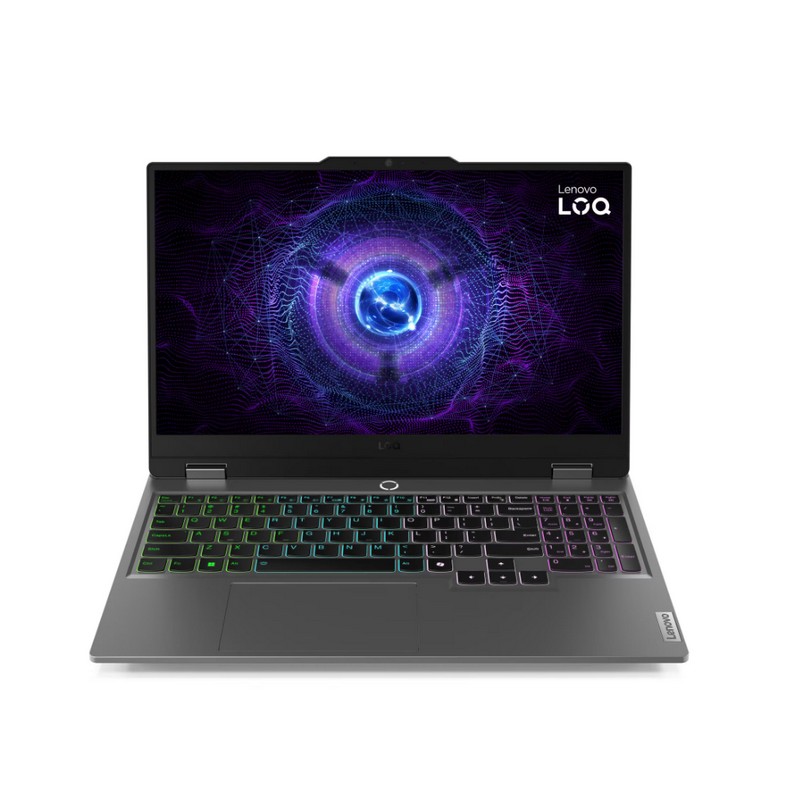

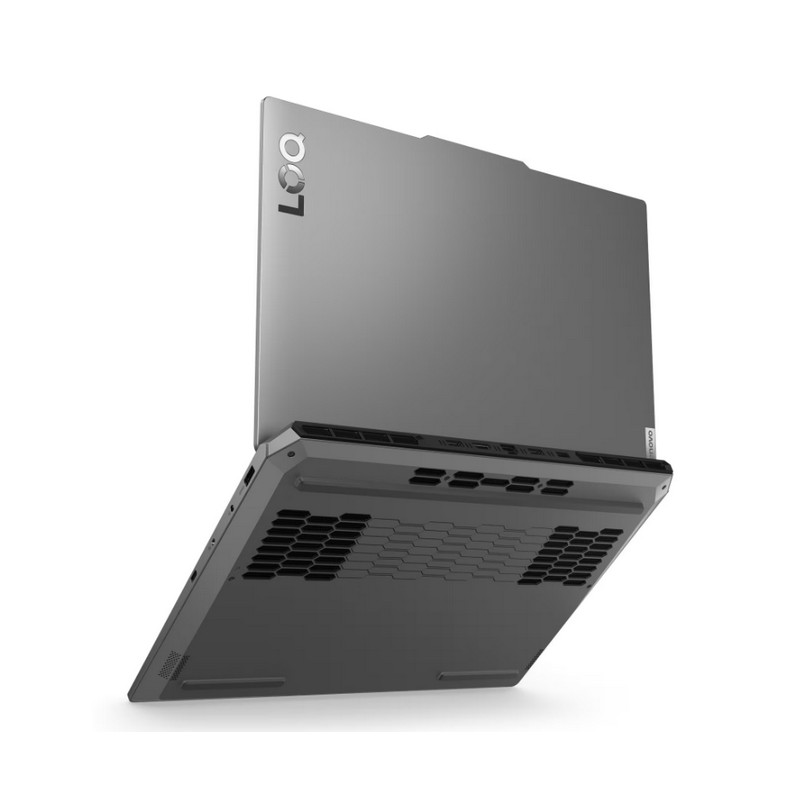

Lenovo LOQ 15IRX9 ( 83DV00UUDP ) Intel Core i7-14700HX- 16GB DDR5-5600 RAM -1TB SSD PCIe NVMe – RTX 4060 8GB – 15.6″ FHD 144Hz 100% sRGB- DOS – Luna Grey – 1 Year

Description

Lenovo LOQ 15IRX9 – High-Performance AI Gaming Laptop

Model: LOQ 15IRX9
Part Number: 83DV00UUDP
Brand: Lenovo

---

Performance

Processor:
Intel® Core™ i7-14700HX
20 Cores (8P + 12E) / 28 Threads
P-core: 2.1GHz up to 5.5GHz
E-core: 1.5GHz up to 3.9GHz
33MB Cache

AI PC Category: AI-Powered Gaming PC

Graphics:
NVIDIA® GeForce RTX™ 4060
8GB GDDR6
Boost Clock: 2370MHz
TGP: 115W
233 AI TOPS

Chipset: Intel® HM770

AI Features: Lenovo AI Chip (LA1)

---

Memory & Storage

Installed Memory:
16GB DDR5-5600 (2× 8GB SO-DIMM)

Memory Slots:
2× DDR5 SO-DIMM (Dual-Channel)

Maximum Memory:
Up to 32GB DDR5-5600

Storage:
1TB M.2 2242 NVMe™ PCIe® 4.0 x4 SSD

Storage Slots:
2× M.2 PCIe® 4.0 x4

Storage Support:

• M.2 2242 SSD up to 1TB

Card Reader: None
Optical Drive: None

---

Display

Size: 15.6″ IPS
Resolution: Full HD (1920 × 1080)
Refresh Rate: 144Hz
Brightness: 300 nits
Color Gamut: 100% sRGB

Display Features:
Anti-glare • NVIDIA® G-SYNC®

Touchscreen: No

---

Audio & Camera

Audio Chip: Realtek® ALC3287 HD Audio
Speakers: Stereo 2W ×2, optimized with Nahimic Audio

Camera: FHD 1080p with E-shutter
Microphones: Dual-array

---

Keyboard & Touchpad

Keyboard: White Backlit, Arabic Layout

Touchpad:
Precision TouchPad (PTP), Mylar® Surface
Size: 75 × 120 mm

---

Design & Build

Color: Luna Grey

Material:
PC-ABS (Top) / PC-ABS (Bottom)

Surface Treatment: Painting

Dimensions:
359.86 × 258.7 × 21.9–23.9 mm

Weight: Starting from 2.38 kg

---

Battery & Power

Battery: Integrated 60Wh
Power Adapter: 230W Slim Tip (3-pin)

---

Connectivity

Wi-Fi: Wi-Fi® 6 (802.11ax 2×2)
Bluetooth: Bluetooth® 5.2
Ethernet: Integrated Gigabit RJ-45 (100/1000M)
WWAN: Not Supported

---

Ports

• 3× USB-A (USB 3.2 Gen 1 / 5Gbps)

• 1× USB-C® (USB 3.2 Gen 2 / 10Gbps, Lenovo® PD up to 140W, DisplayPort™ 1.4)

• 1× HDMI® 2.1 (up to 8K @ 60Hz)

• 1× Headphone / Microphone Combo (3.5mm)

• 1× Ethernet (RJ-45)

• 1× Power Connector

Docking:
Supported via USB-C® docking solutions

---

Software

Operating System: None (DOS / No OS)
Bundled Software: None

---

Security & Privacy

Security Chip: Firmware TPM 2.0
Camera Privacy: E-shutter
Fingerprint Reader: No

---

Warranty & Service

Base Warranty: 1-Year Courier / Carry-in
Bundled Accessories: None
