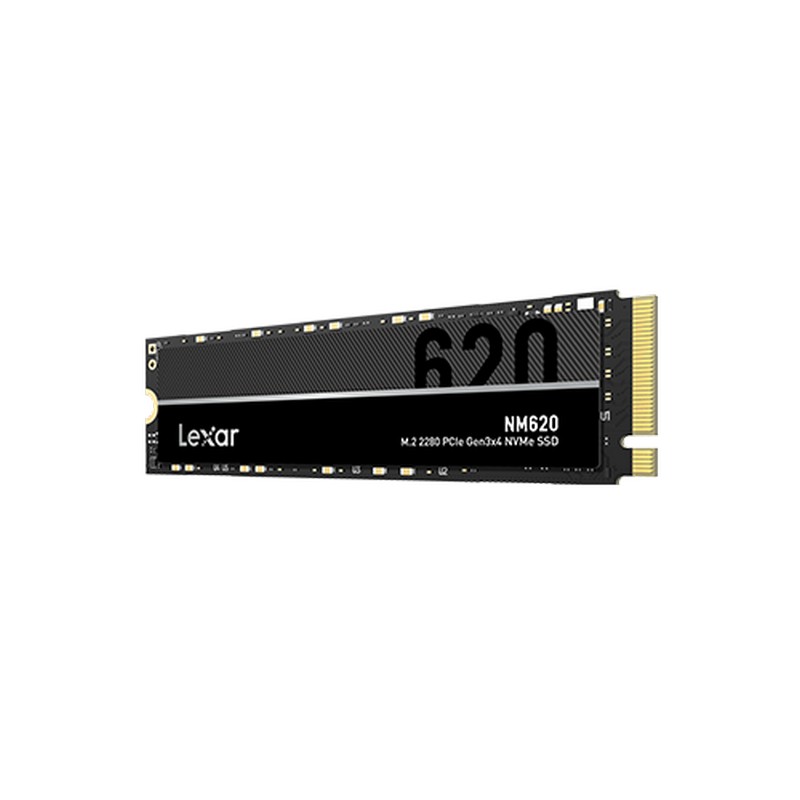

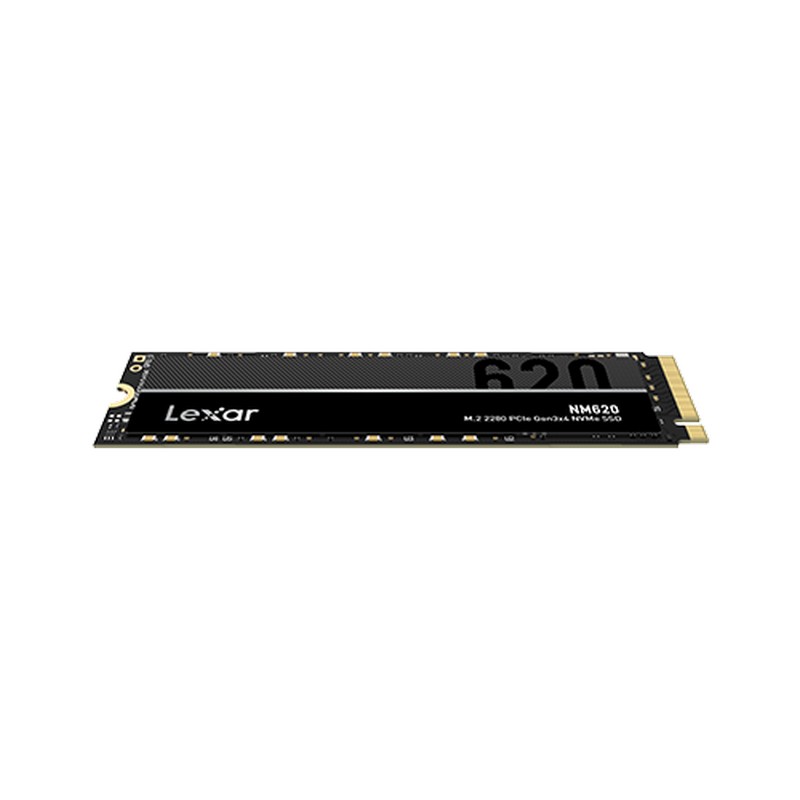

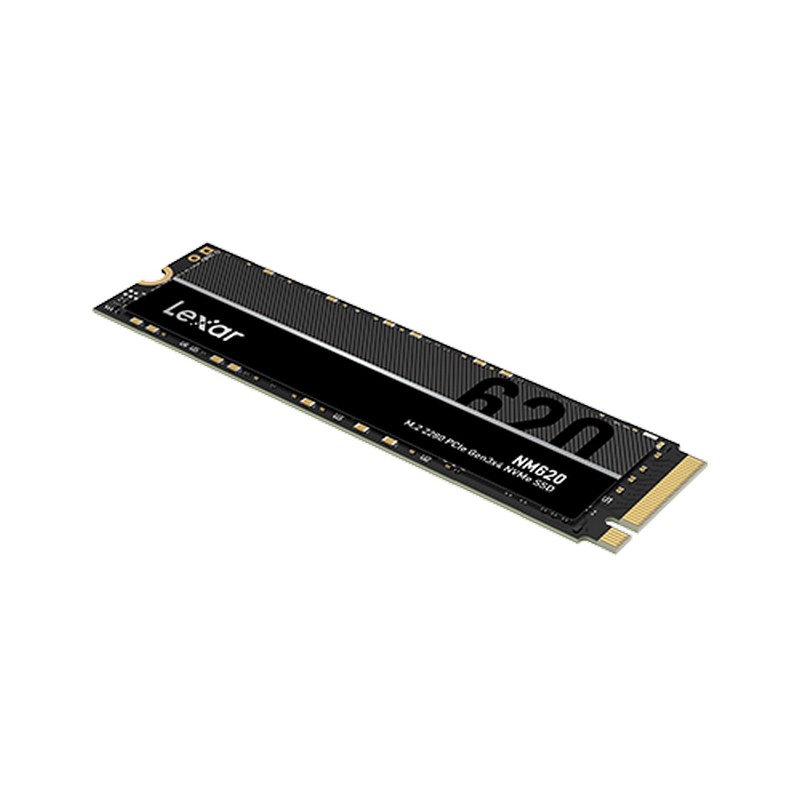

Lexar HD 512 GB Lexar NM620 M.2 NVME

Description

Specifications:

Form Factor: M.2 2280

Interface: PCIe Gen3x4

Performance:

256GB —sequential read up to 3500MB/s, write up to 1300MB/s
IOPS: up to 92/240K
512GB —sequential read up to 3500MB/s, write up to 2400MB/s
IOPS: up to 200/256K
1TB —sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 200/256K
2TB —sequential read up to 3500MB/s, write up to 3000MBs
IOPS: up to 300/256K

Operating Temperature: 0°C to 70°C (32°F to 158°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Dimension (L x W x H): 80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”

Weight: 9g

Warranty: 5 Years limited warranty

Shock Resistant: 1500 G, duration 0.5ms, Half Sine Wave

Vibration Resistant: 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)

TBW: 2TB:1000, 1 TB: 500 TB, 512 GB: 250 TB,, 256 GB: 125 TB

DWPD: 1 TB: 0.44, 512 GB: 0.44, 256 GB: 0.44

NAND flash: 3D TLC

MTBF: 1,500,000 Hours
