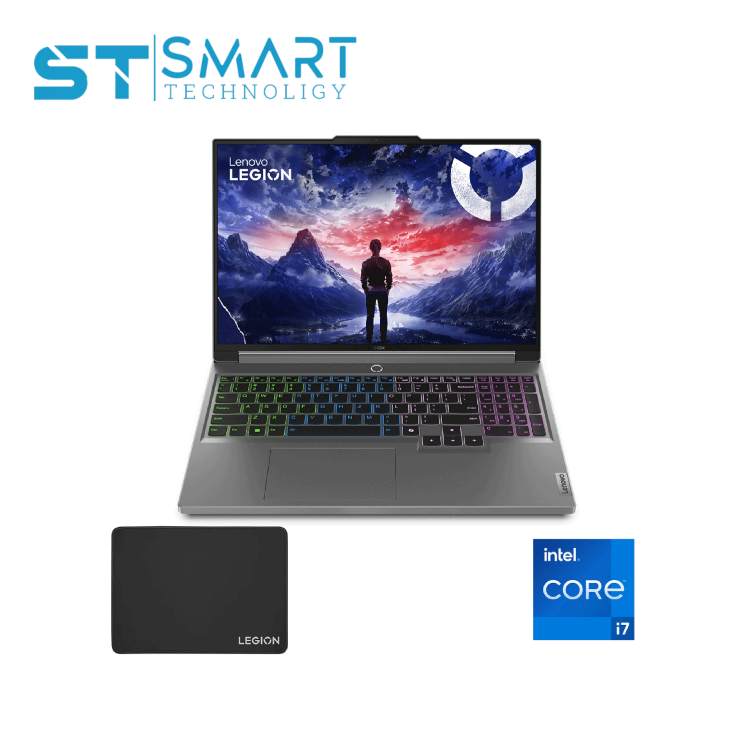

Lenovo Legion Pro 5 16IRX9 ( 83DF000AAX ) – Core i7-14650HX, 16GB 5600 DDR5 RAM, 1TB SSD PCIe NVMe, RTX 4060 8GB, 16″ WQXGA 240Hz, Free DOS, Arabic Keyboard, Onyx Grey, 1-Year Warranty + Lenovo Legion Gaming Speed Mouse Pad

Legion Pro 5 16IRX9
Part Number: 83DF000AAX

Processor: Intel® Core™ i7-14650HX, 16C (8P + 8E) / 24T, P-core 2.2 / 5.2GHz, E-core 1.6 / 3.7GHz, 30MB
Graphics: NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W
Chipset: Intel® HM770 Chipset
Memory: 1x 16GB SO-DIMM DDR5-5600
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-5600 offering
Storage: 1TB SSD M.2 2280 PCIe® 4.0×4 NVMe®
Storage Support: Up to two drives, 2x M.2 SSD

• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB
  Storage Slot: Two M.2 2280 PCIe® 4.0 x4 slots
  Card Reader: None
  Optical: None
  Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec
  Speakers: Stereo speakers, 2W x2, optimized with Nahimic Audio
  Camera: FHD 1080p with Privacy Shutter
  Microphone: 2x, Array
  Battery: Integrated 80Wh
  Power Adapter: 300W Slim Tip (3-pin)
  Special Features: AI Chip: LA1

DESIGN
Display: 16″ WQXGA (2560×1600) IPS 500 nits Anti-glare, 100% sRGB, 240Hz, DisplayHDR™ 400, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance
Touchscreen: None
Color Calibration: Factory Color Calibration
Keyboard: 4-Zone RGB Backlit, Arabic
Touchpad: Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)
Case Color: Onyx Grey
Surface Treatment: Anodizing
Case Material: Aluminium (Top), PC-ABS (Bottom)
Dimensions (WxDxH): 363.4 x 261.75 x 21.99-26.95 mm (14.31 x 10.31 x 0.87-1.06 inches)
Weight: Around 2.5 kg (5.5 lbs)

SOFTWARE
Operating System: None
Bundled Software: None

CONNECTIVITY
Ethernet: 100/1000M (RJ-45)
WLAN + Bluetooth: Wi-Fi® 6E, 802.11ax 2×2 + BT5.2

Standard Ports:

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
• 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with Lenovo® PD 140W and DisplayPort™ 1.4
• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4
• 1x HDMI® 2.1, up to 8K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Ethernet (RJ-45)
• 1x Power connector

Docking: Various docking solutions supported via Thunderbolt™ / USB-C®.
For more compatible docking solutions, please visit Docking for Legion Pro 5 16IRX9

Security Chip: Firmware TPM 2.0 Enabled
Fingerprint Reader: None
Other Security: E-shutter

SERVICE
Base Warranty: 1-year, Courier or Carry-in

ACCESSORIES
Bundled Accessories: Lenovo® Legion™ Gaming Speed Mouse Pad M
